$990.00 Original price was: $990.00.$0.00Current price is: $0.00.

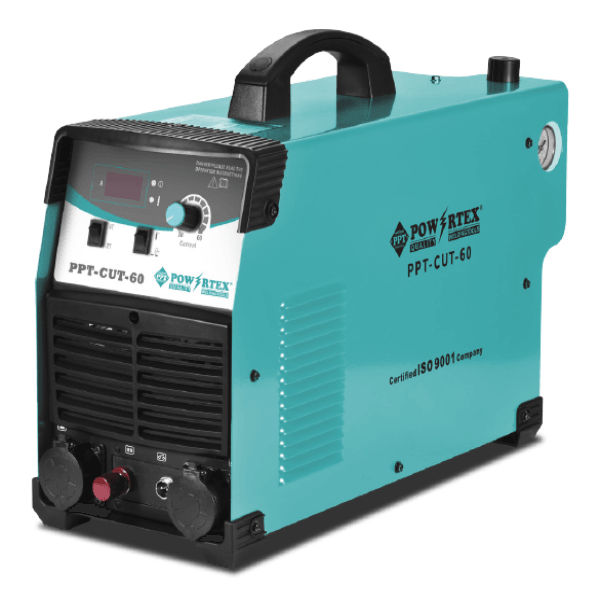

| Model | PPT-CUT-60 |
|---|---|
| Rated input voltage | 3 phase AC415V±15% 50/60Hz |
| Rated input power capacity (kVA) | 10 |
| Power factor | 0.7 |
| Rated output (A/V) | 60/104 |
| Rated duty cycle | 40% (40°C) |
| No-load voltage (V) | 300 |
| Output current range (A) | 20~60 |
| Arc ignition type | HF |
| Post-flow time (s) | 10 |
| Gas pressure range (MPa) | 0.4~0.6 |
| Insulation class | F |
| Cooling mode | Air cooling |
| Protection class | IP21S |
| Efficiency (%) | 85 |
| Dimensions (mm) | 540 X 250 X 380 |
| Weight (Kg) | 17 |
