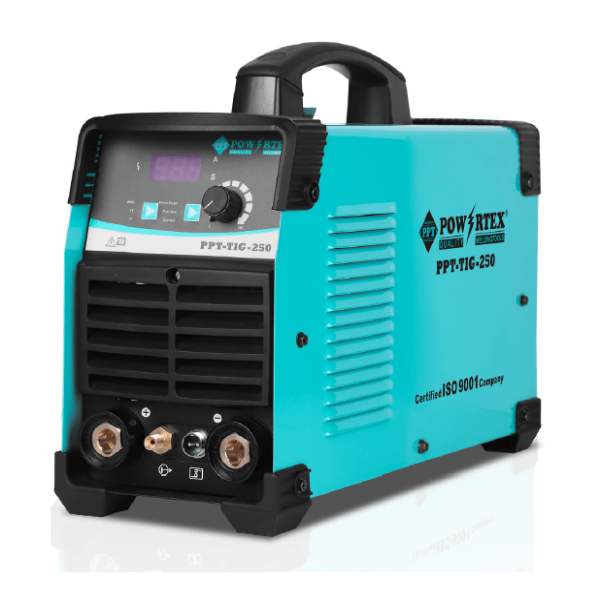

Powertex PPT-TIG-250 Inverter Welding Machine
Technical Specification
| Model | PPT-TIG-250 |
|---|---|
| Rated input voltage | 1 phase AC230V ±15% 50/60Hz |
| Rated input power capacity (kVA) | TIG: 8 MMA: 9.4 |
| Rated input current (A) | TIG:15.5 MMA: 20 |
| Rated output (A/V) | TIG: 250 A/20 V MMA: 250 A/30 V |
| Rated duty cycle | 25% (40°C) |
| No-load voltage (V) | 65 |
| Output current range (A) | TIG: 10~250 MMA: 10~250 |
| Post-flow time (s) | 0~10 |
| Down slope (s) | 0~10 |
| Arc ignition type | High frequency |
| Protection class | IP21S |
| Insulation class | H |
| Power factor | ≥0.7 |
| Efficiency | ≥75% |
| Dimensions (mm) | 419 X 168 X 307 |
| Weight (Kg) | 7.0 |
