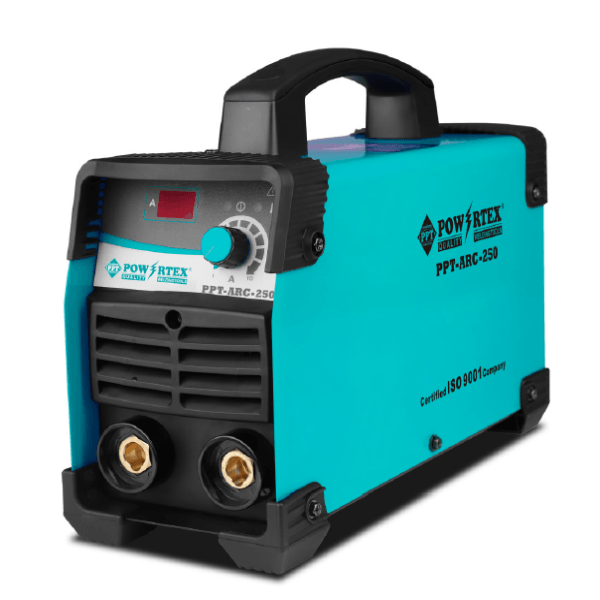

Powertex PPT-ARC-250 Inverter Welding Machine
Key Features
- Digital display meter
- Built-in hot start/arc-force/anti-stick
- Single PCB, compact and portable
- Suitable for 6013, 7015 and 7018 electrode
- Continuous welding at 25 °C ambient temperature
Technical Specification
| Model | PPT-ARC-250 |
|---|---|
| Rated input voltage | 1 phase AC230V±15% 50/60Hz |
| Rated input power capacity (kVA) | 12 |
| Welding current range (A) | 20~250 |
| Welding voltage range (V) | 20.8~30 |
| Rated duty cycle | 25% (40°C) |
| No-load voltage (V) | 65 |
| Overall efficiency (%) | 85 |
| Protection class | IP21S |
| Power factor (cos) | 0.7 |
| Insulation class | H |
| Standard | EN60974-1 |
| Noise (dB) | <70 |
| Dimensions (mm) | 350 X 140 X 259 |
| Weight (Kg) | 4 |
| Applicable electrode (mm) | 1.6-5.0 |
