Description

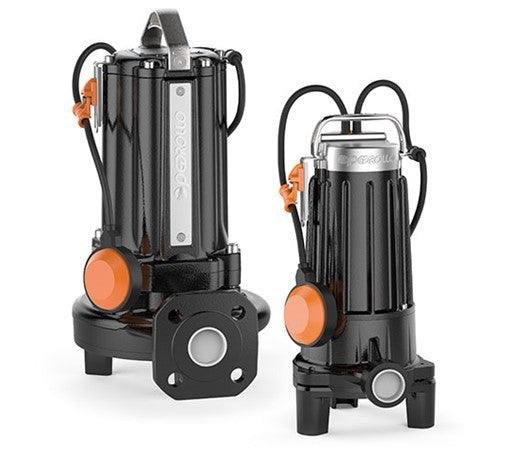

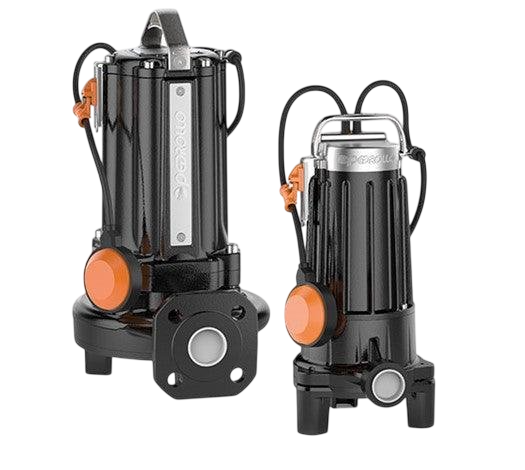

The grinder pump of the TRITUS series, made of remarkably thick cast iron, exceptionally robust, abrasion-resistant and long lasting, is equipped with highly resistant and tempered stainless steel GRINDER. This allows for the total shredding of solids and fibers contained in wastewater and sewage in domestic and civil sectors, for the conveyance under pressure into the sewer system through small diameter pipes.
Features
Liquid type: Sewage water
Uses: domestic, civil
Applications: drainage, dirty water – slightly solid particles, emptying tanks
typology: submersible
Family: submersible pumps
Performance Range:
- Flow rate up to 280.00 l/min (16.8 m³/h)
- Head up to 31.00 m
Application Limit:
- Temperature of the liquid to +40 °C
• 10 m maximum immersion depth
(with a sufficiently long power cable)
• Suction down above ground level:
– 85 mm for TR 0.75-1.1
– 95 mm for TR 1.5-2.2
• Minimum immersion depth for continuous service:
– 300 mm for TR 0.75-1.1
– 350 mm for TR 1.5-2.2
| MODEL | PHASE | POWER | PERFORMANCE | MOUTHS | |||
|---|---|---|---|---|---|---|---|
| kW | HP | Q l/min | H m | asp. | mand. | ||
| TRm 0.75 | Single Phase | 75 | 1 | 20 ÷ 125 | 15 ÷2 | – | 1¼″ |
| TRm 0.9 | Single Phase | 90 | 1.25 | 20 ÷ 170 | 15 ÷2 | – | 1¼″ |
| TR 0.9 | Three-phase | 90 | 1.25 | 20 ÷ 170 | 15 ÷2 | – | 1¼″ |
| TRm 1.1 | Single Phase | 11 | 1.5 | 20 ÷ 140 | 21.5 ÷2 | – | 1¼″ |
| TR 1.1 | Three-phase | 11 | 1.5 | 20 ÷ 140 | 21.5 ÷2 | – | 1¼″ |
| TRm 1.3 | Single Phase | 1.31 | 1.75 | 20 ÷ 220 | 22.5 ÷2 | – | 1¼″ |
| TR 1.3 | Three-phase | 1.31 | 1.75 | 20 ÷ 220 | 22.5 ÷2 | – | 1¼″ |
| TRm 1.5 | Single Phase | 15 | 2 | 20 ÷ 270 | 25 ÷2 | – | 1½″ |
| TR 1.5 | Three-phase | 15 | 2 | 20 ÷ 270 | 25 ± 2 | – | 1½″ |
| TR 2.2 | Three-phase | 22 | 3 | 20 ÷ 270 | 30 ± 2 | – | 1½″ |
