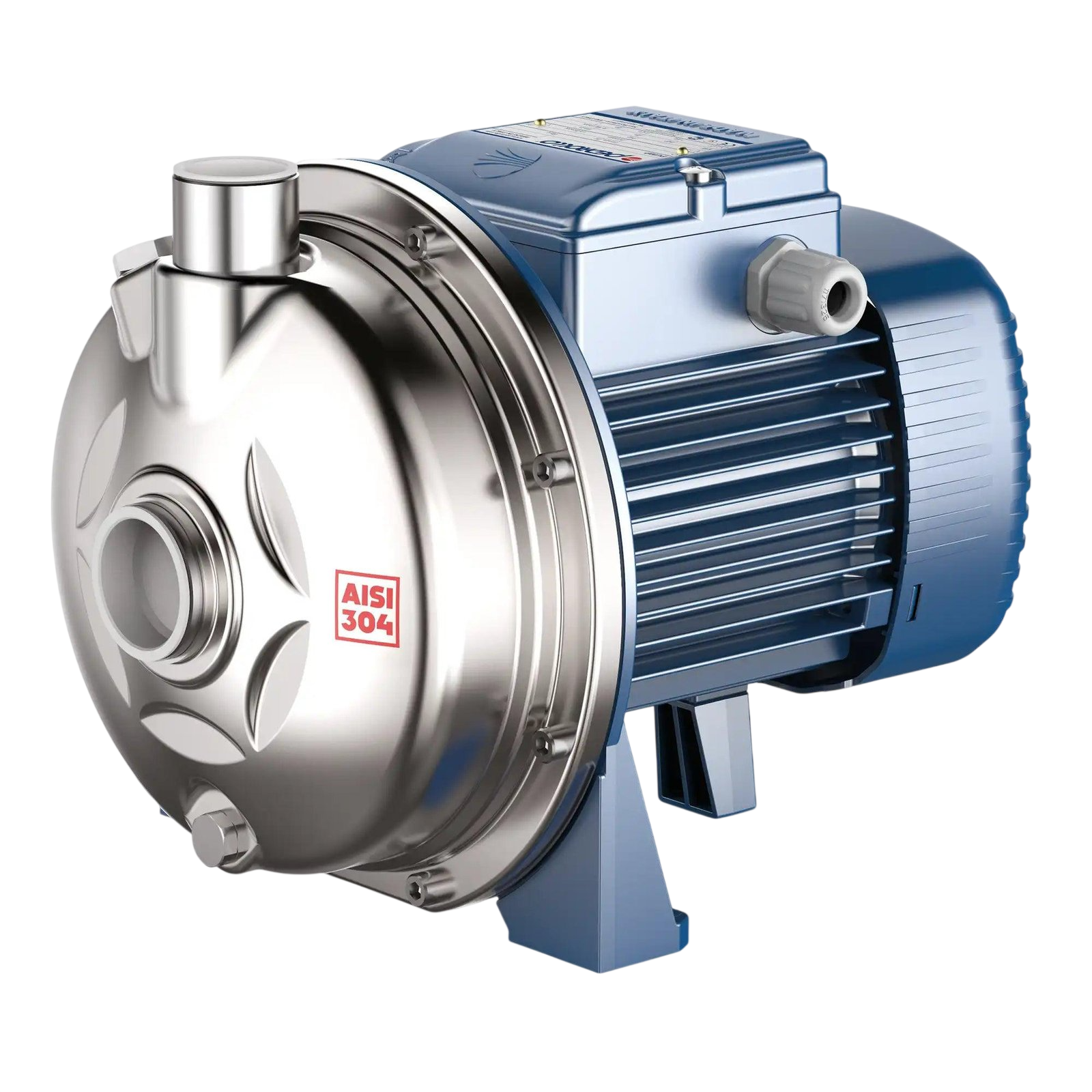

Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Thanks to their construction features, these centrifugal pumps are suited for domestic and industrial applications. All components in contact with the pumped liquid are made of AISI 304 or AISI 316L stainless steel, ensuring total hygiene and maximum corrosion resistance.
| Flow rate | up to 270 l/min (16.2 m³/h) |
| Head up | up to 45 m |
| Manometric suction head | up to 7 m |
| Liquid temperature | between -10 °C and +90 °C |
| Ambient temperature | up to +40 °C |
| Maximum working pressure | – 6 bar for CP 100-130-132-150-158 ST4-6 – 8 bar for CP 170-170M-180-190-200 ST4-6 |
| Motor | 2 poles |
| Ingress protection rating | IP X4 |
