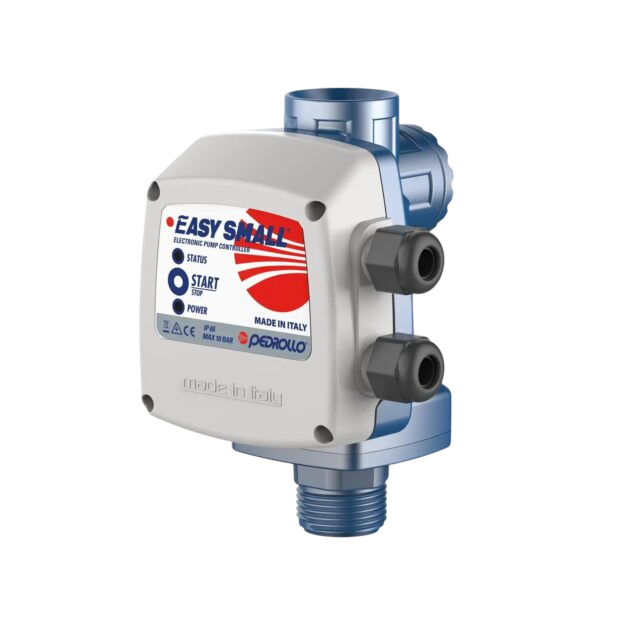

EASYSMALL is a compact and cost-effective electronic control and protection device for single-phase domestic pumps with power up to 1.5 HP. EASYSMALL features a pressure sensor and a flow sensor linked to an electronic system that automatically activates the pump when a faucet’s opening lowers the pressure below a specified level and deactivates it when the flow stops or dips under 2 l/min. EASYSMALL is also equipped with:
- a pressure gauge for immediate pressure readings;
- an integrated and inspectable check valve;
- two outlets to fit existing systems and to allow for the installation of a small expansion tank, ensuring better operation.
| Restart pressure | 1.5 bar |
| Liquid temperature | up to +50 °C |
| Ambient temperature | up to +40 °C |
| Maximum pressure | 10 bar |
| Power supply voltage | 1~230V |
| Frequency | 50/60 Hz |
| Ingress protection rating | IP 65 |
