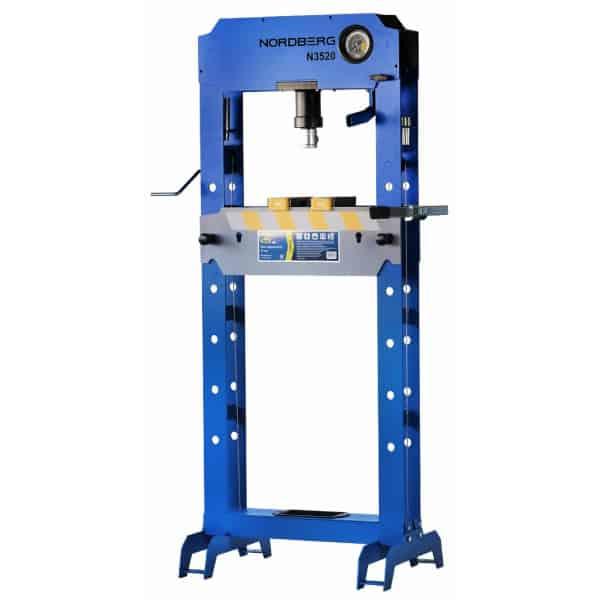

PROLINE Hydraulic shop press - Nordberg
PROLINE Hydraulic shop press - Nordberg
Manual pump | N3515T | N3520 | N3530 | N3550 | N35100 | ||
---|---|---|---|---|---|---|---|
Pneumatic pump | N3520A | N3530A* | N3550A | ||||
Capacity (t) | 15 | 20 | 20 | 30 | 30 | 50 | 100 |
Dimensions,mm | |||||||
A (Width, mm) | 565 | 710 | 770 | 770 | 940 | 930 | 1090 |
B (Depth, mm) | 355 | 505 | 505 | 505 | 535 | 535 | 750 |
C (Height, mm) | 855 | 1800 | 1800 | 1800 | 1900 | 1900 | 1940 |
D (Worktable width, mm) | 440 | 540 | 600 | 600 | 750 | 750 | 850 |
E (Horizontal movable cylinder, mm) | - | - | 200 | 200 | 280 | 280 | 360 |
F (Worktable depth, mm) | 134 | 134 | 148 | 148 | 220 | 200 | 280 |
G1 (Bedplate lift, min, mm) | 45 | 25 | 25 | 25 | 100 | 80 | 130 |
G2 (Bedplate lift, max, mm) | 340 | 850 | 850 | 850 | 700 | 780 | 830 |
R1 (Hydraulic stroke, mm) | 95 | 145 | 145 | 145 | 145 | 145 | 255 |
R2 (Tip screw stroke, mm) | 75 | 75 | 75 | 75 | 70 | 75 | - |
R (Total stroke, mm) | 170 | 220 | 220 | 220 | 215 | 220 | 255 |
Free delivery
Free delivery
Free delivery in Sharjah, Dubai and Ajman, contact us to know the delivery fees for other locations.
Return policy
Return policy
Returns and full refunds available if the product has a manufacturing defect.
T&C applied call us for more information
Payment methods
Payment methods
We accept cash, debit and credit cards , cheques and online transfers.
