PPT-TIG-200
PPT-TIG-200

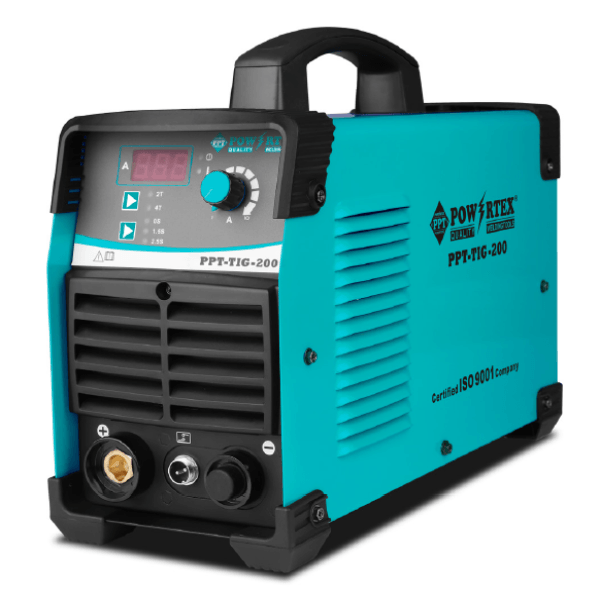

Powertex PPT-TIG-200 Inverter Welding Machine
Key Features
- MMA and TIG welding processes
- Machine panel with abundant function settings, concise display and easy operation
- Smart fan
- Self-diagnosis function and error code display
- Dust-free air passage design with excellent dust-proof and heat dissipation capabilities
- High arc ignition success rate
- Built-in hot start/arc-force/anti-stick (MMA)
- 2T/4T/down slope/post-flow
Technical Specification
| Model | PPT-TIG-200 |
|---|---|
| Rated input voltage | 1 phase AC230V ±15% 50/60Hz |
| Rated input power capacity (kVA) | TIG: 5.8 MMA: 7.3 |
| Rated input current (A) | TIG:12.5 MMA: 16 |
| Rated output (A/V) | TIG: 200 A/18 V MMA: 200 A/18 V |
| Rated duty cycle | 25% (40°C) |
| No-load voltage (V) | 65 |
| Output current range (A) | TIG: 10~200 MMA: 10~200 |
| Post-flow time (s) | 0~10 |
| Down slope (s) | 0~10 |
| Arc ignition type | High frequency |
| Protection class | IP21S |
| Insulation class | H |
| Power factor | ≥0.7 |
| Efficiency | ≥75% |
| Dimensions (mm) | 419 X 168 X 307 |
| Weight (Kg) | 5.0 |
