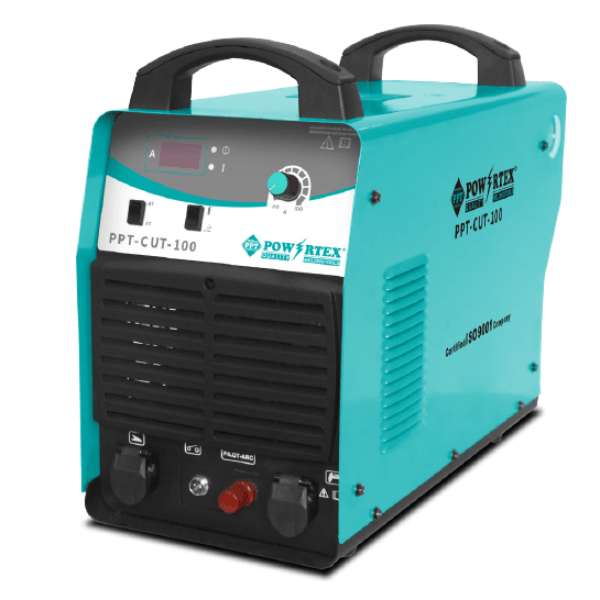

Powertex PPT-CUT-100 Inverter Plasma Cutter
Key Features
- HF is available for easy arc ignition
- Widely used in cutting stainless steel, copper, cast iron and aluminum, etc.
- Smooth cutting surface, high cutting speed
- Digital control technology enhances performance
- Correct level of design margin meets auto cutting
Technical Specification
| Model | PPT-CUT-100 |
|---|---|
| Rated input voltage | 3 phase AC415V±15% 50/60Hz |
| Rated input power capacity (kVA) | 20 |
| Power factor | 0.7 |
| Rated output (A/V) | 100/120 |
| Rated duty cycle | 60% (40°C) |
| No-load voltage (V) | 340 |
| Output current range (A) | 20~100 |
| Arc ignition type | HF |
| Post-flow time (s) | 10 |
| Gas pressure range (MPa) | 0.4~0.6 |
| Insulation class | F |
| Cooling mode | Air cooling |
| Protection class | IP21S |
| Efficiency (%) | 85 |
| Dimensions (mm) | 568 X 259 X 446 |
| Weight (Kg) | 27 |
