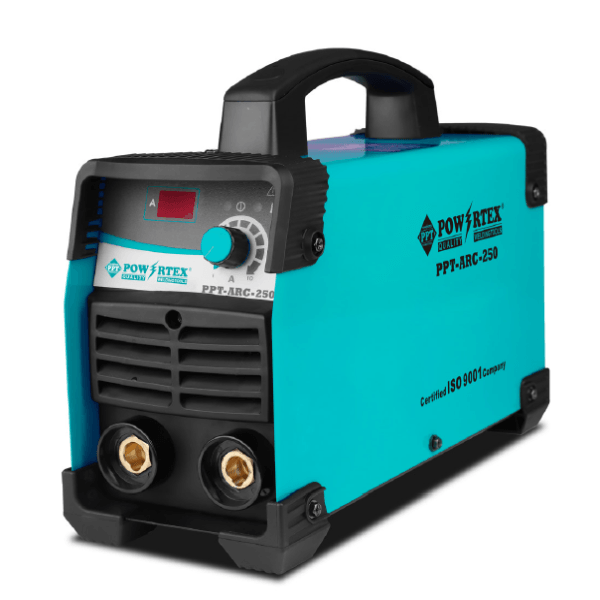

Powertex PPT-ARC-250 Welding machine

Powertex PPT-ARC-250 Welding machine

Powertex PPT-ARC-250 Inverter Welding Machine

Powertex PPT-ARC-250 Inverter Welding Machine

Key Features

  • Digital display meter
  • Built-in hot start/arc-force/anti-stick
  • Single PCB, compact and portable
  • Suitable for 6013, 7015 and 7018 electrode
  • Continuous welding at 25 °C ambient temperature

Technical Specification

Model PPT-ARC-250
Rated input voltage 1 phase AC230V±15% 50/60Hz
Rated input power capacity (kVA) 12
Welding current range (A) 20~250
Welding voltage range (V) 20.8~30
Rated duty cycle 25% (40°C)
No-load voltage (V) 65
Overall efficiency (%) 85
Protection class IP21S
Power factor (cos) 0.7
Insulation class H
Standard EN60974-1
Noise (dB) <70
Dimensions (mm) 350 X 140 X 259
Weight (Kg) 4
Applicable electrode (mm) 1.6-5.0
