C.R.I CTB ,CTC & CTS Series
C.R.I CTB ,CTC & CTS Series

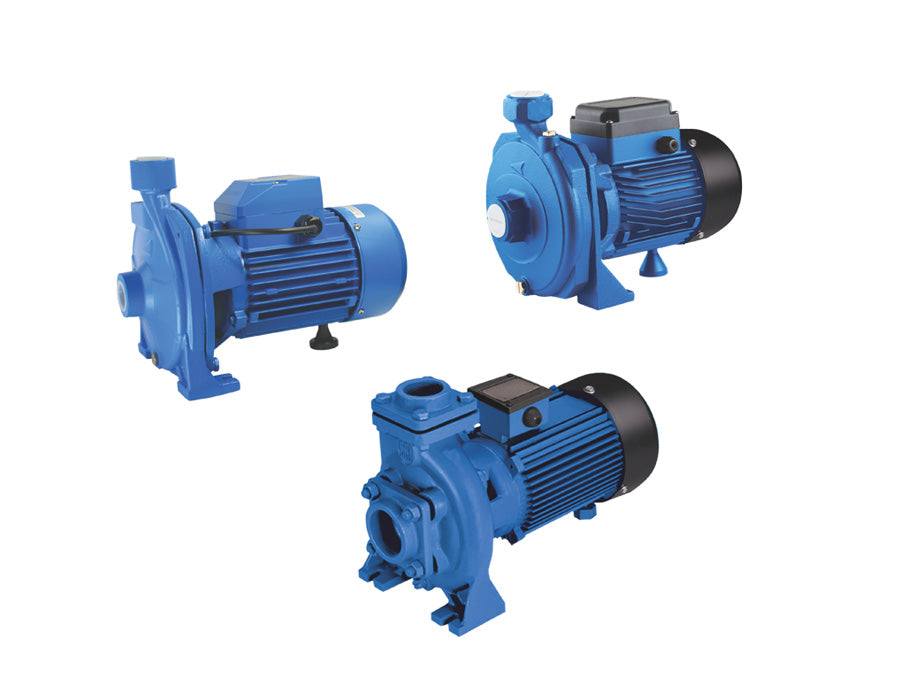

C.R.I. CT-Series pumps are robust, compact, single-stage centrifugal monoblock pumps designed for high head and flow applications. They feature a radial flow impeller for optimal performance.
Each pump is powered by a totally enclosed fan-cooled (TEFC) motor, and their monoblock construction ensures efficient energy transfer from the motor to the pump. You can find these pumps available for both single-phase and three-phase power supplies.
The volute chamber and impeller are meticulously engineered for superior hydraulic efficiency and excellent suction lift. Plus, the back pull-out design makes maintenance a breeze. Single-phase models include thermal protection, and some variations are available with stainless steel construction for added durability.
| Power Range( kW) | 0.37 kW-2.2 kW |
| Speed | 2900 rpm |
| Versions | Single phase – 230V, 50Hz, A.C. Three phase – 380-415V, 50Hz A.C. supply |
| Type of Duty | S1 Continuous Duty |
| Degree of Protection | IP 44 / IP 54 |
| Class of Insulation | B |
| Maximum Discharge | Upto 42 m³/h |
| Maximum Head | Upto 52.5m |
| Max.Suction Lift | Upto 7 m |
| Sealing Type | Mechanical Seal |
| Max.Liquid Temperature | 30°C |
| Max.Ambient Temperature | 40°C |
| Max.Operating Pressure | 5.2bar |
| Flange Standard | Manufacturer Standard |
| Suction Flange Size in mm | 25, 32, 50, & 65 |
| Delivery Flange Size in mm | 25, 40 & 50 |
