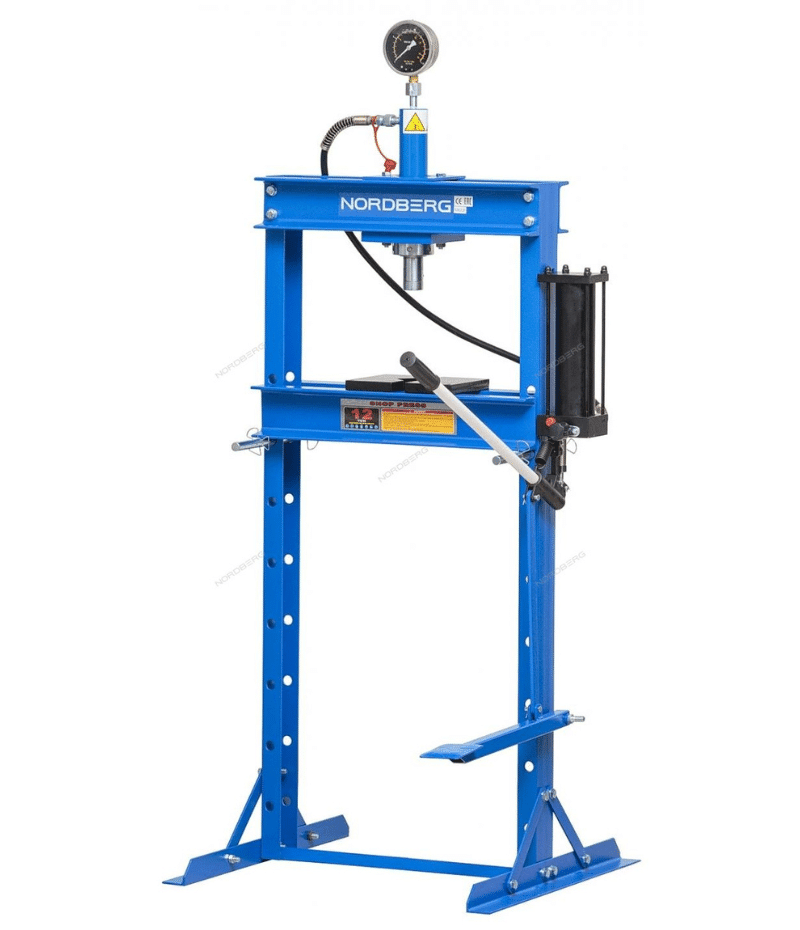

Hydraulic shop press - Nordberg

Manual pump	N3610L	N3612L	N3621L	-	-
Manual pump + foot pedal	-	N3612FL	N3621FL	-	-
Pneumatic pump	-	-	N3621L	N3631AL	N3650AL
Capacity (t)	10	12	20	30	50
Dimensions, mm
A (Width, mm)	600	695	730	845	975
B (Depth, mm)	500	500	700	700	850
C (Height, mm)	1070	1345	1550	1605	1645
D (Worktable width, mm)	340	510	535	600	650
E (Horizontal movable cylinder, mm)	-	355	385	-	-
F (Worktable depth, mm)	115	85	95	120	185
G1 (Worktable lift min)	220	165	160	140	155
G2 (Worktable lift max)	390	930	1035	1015	905
R (Hydraulic stroke, mm)	115	150	155	140	230

Free delivery

Free delivery in Sharjah, Dubai and Ajman, contact us to know the delivery fees for other locations.

Returns and full refunds available if the product has a manufacturing defect.

T&C applied call us for more information

We accept cash, debit and credit cards , cheques and online transfers.
