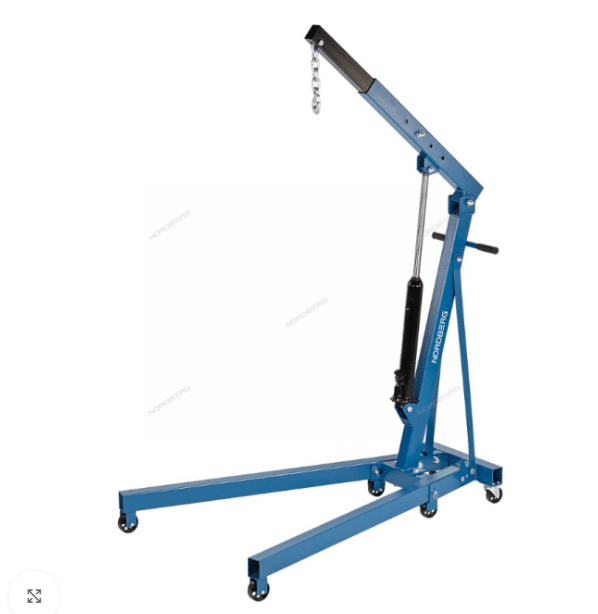

Hydraulic crane N37 - Nordberg
Hydraulic crane N37 - Nordberg
Model | N3710 | N3720 | N3721 | N3722 | N3730 |
---|---|---|---|---|---|
Capacity, kg | |||||
with boom in position L1 (P1) | 1,000 | 2,000 | 2,000 | 2,000 | 3,000 |
with boom in position L2 (P2) | 750 | 1,500 | 1,500 | 1,500 | 2,000 |
with boom in position L3 (P3) | 500 | 1,000 | 1,000 | 1,000 | 1,000 |
with boom in position L4 (P4) | 250 | 500 | 500 | 500 | 500 |
Max lifting height, mm | |||||
with boom in position 1 (H1) | 1,935 | 1,810 | 2,180 | 1,820 | 1,895 |
with boom in position 4 (H2) | 2,060 | 2,170 | 2,300 | 2,230 | 2,240 |
Boom length, mm | |||||
in position 1 (L1) | 1,055 | 1,045 | 900 | 1,000 | 1,315 |
in position 2 (L2) | 1,145 | 1,225 | 1,080 | 1,180 | 1,520 |
in position 3 (L3) | 1,235 | 1,415 | 1,260 | 1,360 | 1,725 |
in position 4 (L4) | 1,325 | 1,600 | 1,440 | 1,540 | 1,980 |
Base height (A) | 163 | 185 | 185 | 185 | 190 |
Base length (B) | 1,560 | 1,760 | 1,595 | 1,690 | 1,500 |
Max base width (D) | 1,050 | 1,005 | 1,005 | 1,055 | 1,050 |
Distance between rear wheels (E) | 480 | 685 | 810 | 600 | 800 |
Height (C) | 1,400 | 1,395 | 1,325 | 1,385 | 1,475 |
