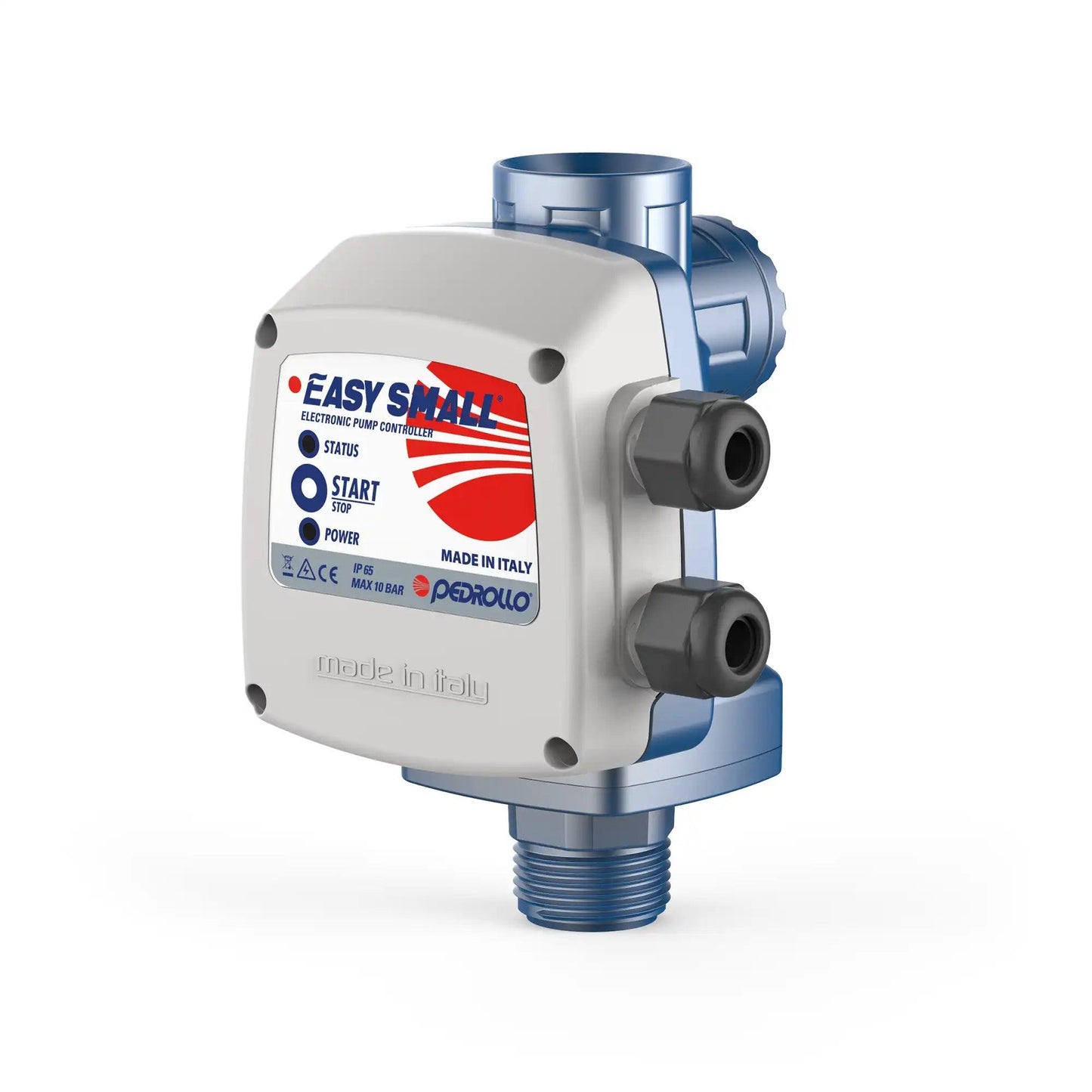

Pedrollo EASYSMALL Automatic control device

EASYSMALL is a compact and cost-effective electronic control and protection device for single-phase domestic pumps with power up to 1.5 HP. EASYSMALL features a pressure sensor and a flow sensor linked to an electronic system that automatically activates the pump when a faucet's opening lowers the pressure below a specified level and deactivates it when the flow stops or dips under 2 l/min. EASYSMALL is also equipped with:

• a pressure gauge for immediate pressure readings;
• an integrated and inspectable check valve;
• two outlets to fit existing systems and to allow for the installation of a small expansion tank, ensuring better operation.
