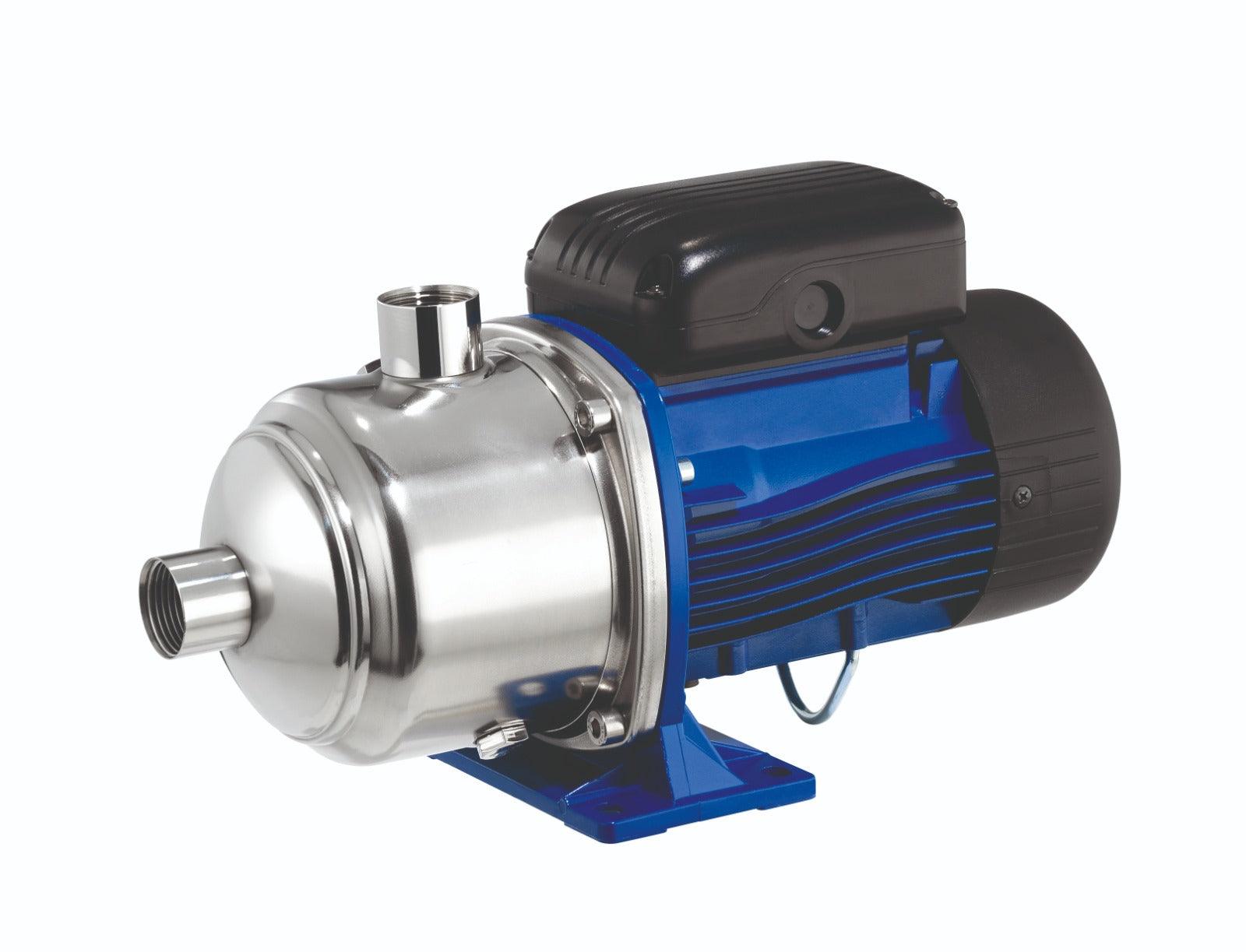

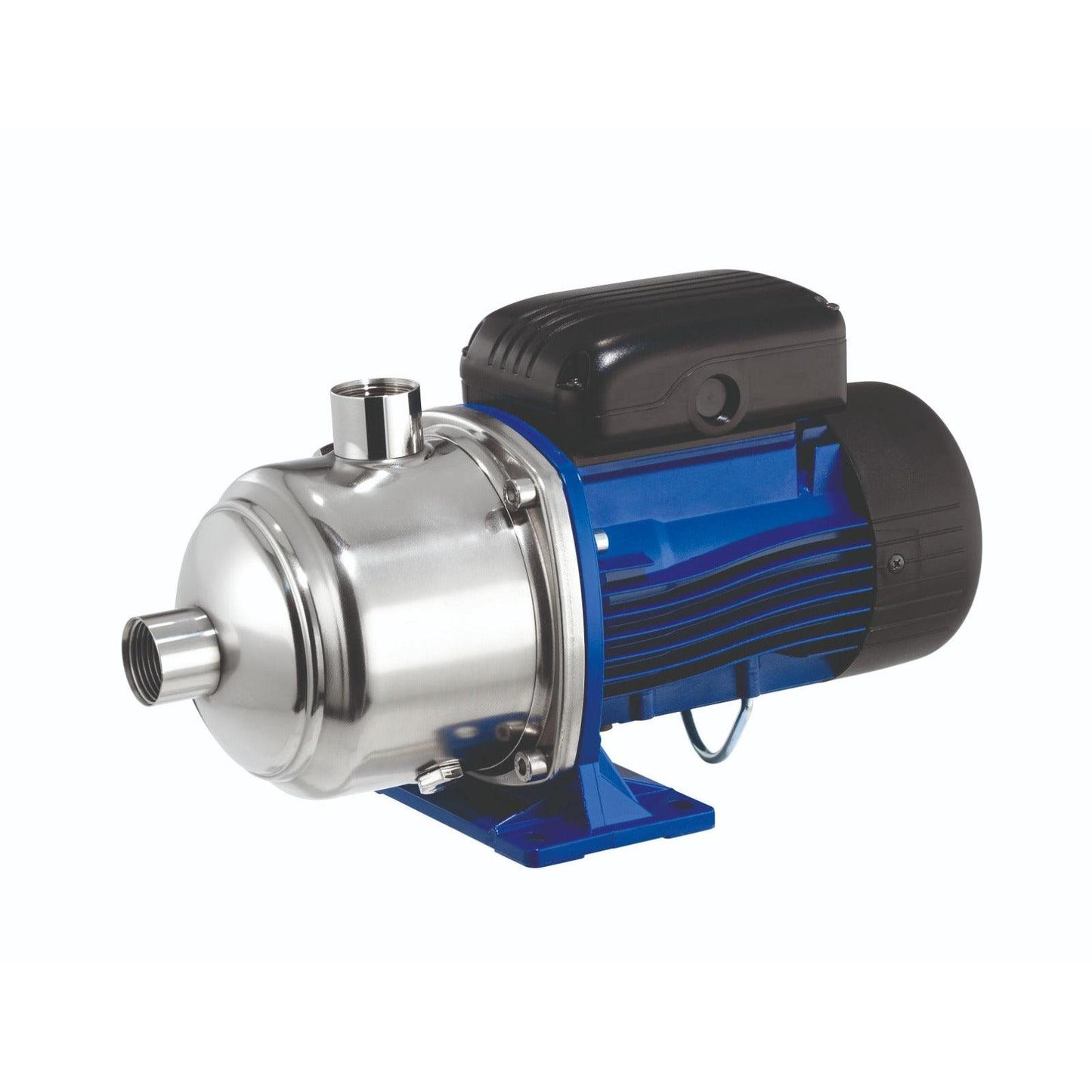

Pedrollo 3HM04P05M5HVBE (e-HM) Stainless Steel Horizontal Multi-Stage Pump

Pedrollo 3HM04P05M5HVBE (e-HM) Stainless Steel Horizontal Multi-Stage Pump

The new e-HM range are threaded horizontal multi-stage pumps with IE3 motors (complying with regulation EC 640/2009 and are suitable for use in the following environments:

  • Pressure boosting and water supply systems (domestic and industrial)
  • Washing and cleaning industry including vehicles washing
  • Circulation of hot and cold liquids (like water, water and glycol) for heating, cooling and conditioning systems
  • Water treatment applications
  • Handling of moderately aggressive liquids
  • Food & beverage industries

The "e-HM" range consists of:

  • e-HM standard pump - on/off system
  • e-HM pump with pressure switch and pressure tank - on/off system
  • e-HM pump with Genyo - semi-constant pressure system
  • e-HM pump with Teknospeed (TKS) - constant pressure system with variable speed pump
  • e-HM residential pump sets (twin pumps)

Benefits include:

  • Lower energy bills
  • Long service life
  • Low noise level (even at peak performance)
  • No water hammer
  • Temperature control
  • Compact design

The e-HM...P range of horizontal multi-stage pumps have technopolymer impellers and AISI 304 Stainless steel pump bodies and diffusers. They are available in 240V 1Ph 50Hz and 415V 3Ph 50Hz models. All pumps are WRAS approved.

Specification Details
Weight 7.0 Kg
Dimensions 201mm High x 149mm Wide x 356mm Deep
Motor Size (kW/W) 0.5kW
Full Load Current (FLC) 3.18A
Voltage 240V 1Ph 50Hz
Max Flow 1.2 l/sec
Max Head 45m
Material Stainless Steel
