15HM05S40T5
15HM05S40T5
15HM05S40T5

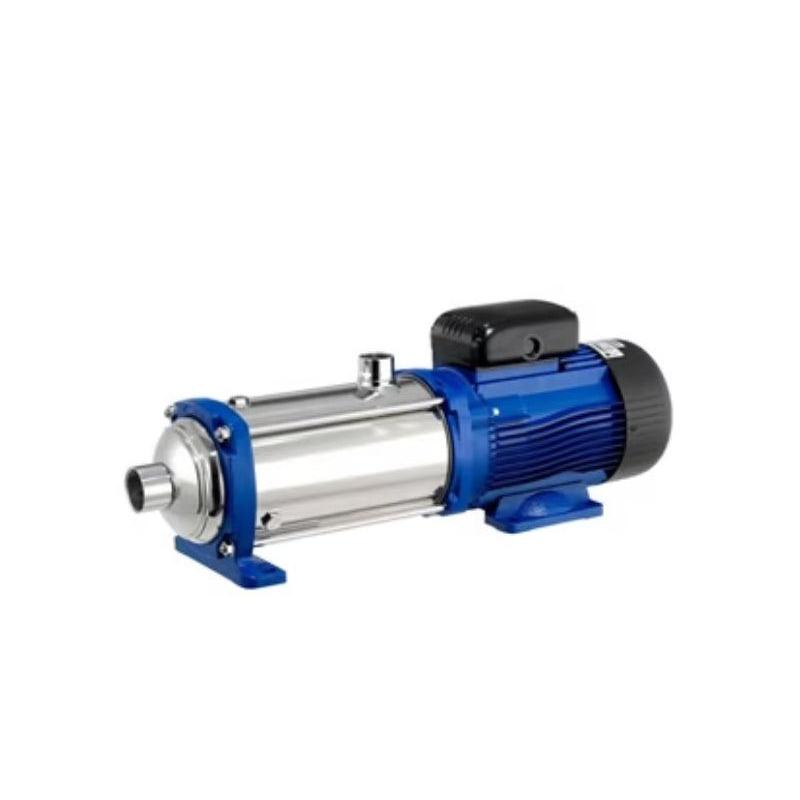

The Goulds 15HM05S40T5 is a horizontal multi-stage pump designed for high-pressure applications. Key Specifications:
- Flow Rate: Up to 5 GPM (Gallons per Minute)
- Maximum Pressure: 40 PSI
- Material: 304 Stainless Steel casing and impellers
- Motor Power: 5 HP, TEFC motor
- Operating Temperature: Up to 120F (49C)
- Connections: Threaded NPT Inlet/Outlet
- Pump body and diffusors of stainless steel AISI 304.
- Impellers of stainless steel AISI 304.
- O`rings of EPDM.
- Mechanical seal: pottery / coal / EPDM.
- Bearings of the hydraulic set: Carbide of tungsten.
- Maximum temperature of the liquid: 120ºC
- Asynchronous engine, 2 poles.
- Tension 220-240V / 380-415V, 50 Hz
- Protection IP55
- Isolation class F, continuous service
