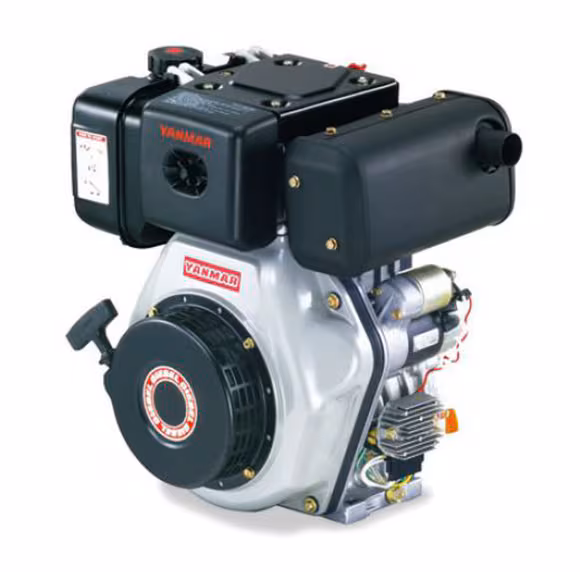

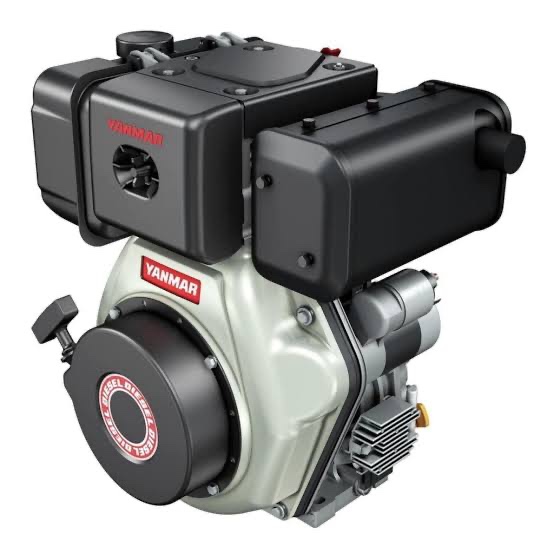

The Yanmar L100N is a compact, vertical-cylinder, 4-cycle, air-cooled diesel engine designed for industrial equipment and machinery. Its direct-injection design supports easy installation and low fuel consumption, while low vibration and low noise contribute to smoother operation. The engine also features a one-pull recoil starter for convenient starting. With its compact design and dependable diesel power, the Yanmar L100N is suitable for equipment manufacturers and industrial users looking for an air-cooled diesel engine solution in the UAE, GCC, and Africa.
Specifications
- Model: L100N
- Engine Type: Vertical cylinder, 4-cycle, air-cooled diesel engine
- No. of Cylinders: 1
- Fuel System: Direct injection
- Bore × Stroke: Φ86 × 75 mm
- Displacement: 0.435 L
- Maximum Rated Engine Speed: 3000–3600 rpm
- Output: 6.5–7.4 kW (8.8–10.0 hp)
- Engine Dry Mass: 48.5 / 53.5 kg
- Dimensions (L × W × H): 412 × 471 × 494 mm
- Starting System: One-pull recoil starter
- Key Features: Low vibration and low noise
