| Product | Geometrical capacity | Max rpm | Max abs pressure Bar (PSI) |
Max vacuum % (inHg) |
Max continuous vacuum % (inHg) |
Power at max vacuum kW (HP) |
Weight kg | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m³/h | l/min | cfm | M | P | D | H | HM | M | P | D | H | HM | |||||
| MEC 1000 | 75,6 | 1260 | 45 | 600 | 1400 | – | 1400 | – | 2,5 (36) | 89% (26,3”) | 60% (18”) | 3,5 (4,7) | 40 | 34 | – | 48 | – |
| MEC 1600 | 118,8 | 1980 | 70 | 600 | 1400 | – | 1400 | – | 2,5 (36) | 89% (26,3”) | 60% (18”) | 4,5 (6) | 48 | 42 | – | 56 | – |
| MEC 2000 | 165 | 2750 | 97 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 91% (27,0”) | 60% (18”) | 5,5 (7,3) | 75 | 65 | 65 | 81 | 77 |
| MEC 3000 | 216 | 3600 | 127 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 92% (27,2”) | 60% (18”) | 7 (9,4) | 86 | 75 | 77 | 92 | 89 |
| MEC 4000 | 261 | 4350 | 154 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 9 (12,6) | 97 | 85 | 90 | 116 | 102 |
| MEC 5000 | 369 | 6150 | 217 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 11 (14,7) | 127 | 120 | 121 | 136 | 132 |
| MEC 6500 | 420 | 7000 | 247 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 12,5 (16,7) | 142 | 129 | 130 | 154 | 150 |
| MEC 8000 | 486 | 8100 | 286 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 16 (21,4) | 157 | 140 | 141 | 174 | 162 |

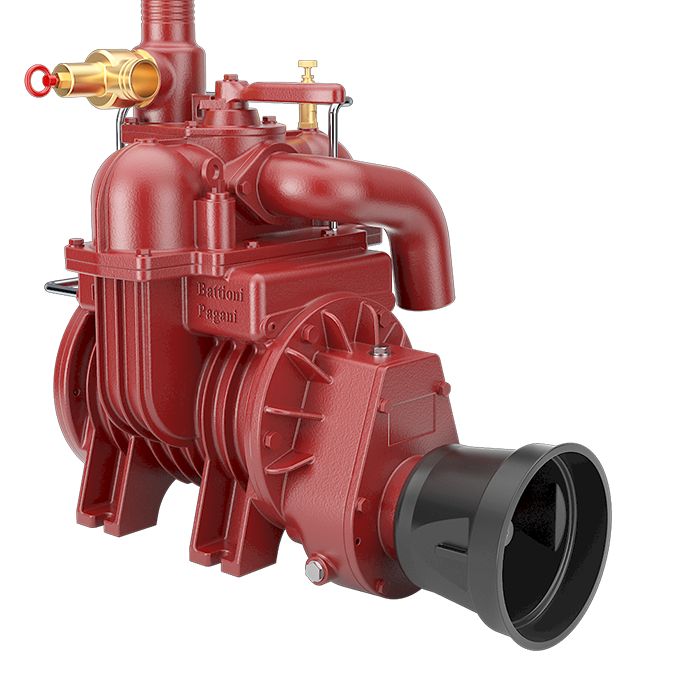

MEC 1000 – 1600 – 2000 – 3000 – 4000 – 5000 – 6500 – 8000 – THE LEGEND
In stock
MEC 2000 / 3000 / 4000 – Simple and practical design
The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.
MEC 2000 / 3000 / 4000 vacuum pump series offers a simple and practical design for UAE, GCC, and Africa markets. Built for agricultural and municipal septic applications, it delivers reliable suction performance with forced lubrication, 4-way valve, and robust construction for long service life in demanding vacuum systems.
It’s simple and practical design made the MEC pumps the product of reference for agricultural and municipalities septic applications.
STANDARD FEATURES
• Forced lubrication, 4-ways valve, non-return check valve
• Available hoses connections: Ø 45 mm / Ø 60 mm / G 2”
• Thread for Overpressure valve: G 1”1/4
