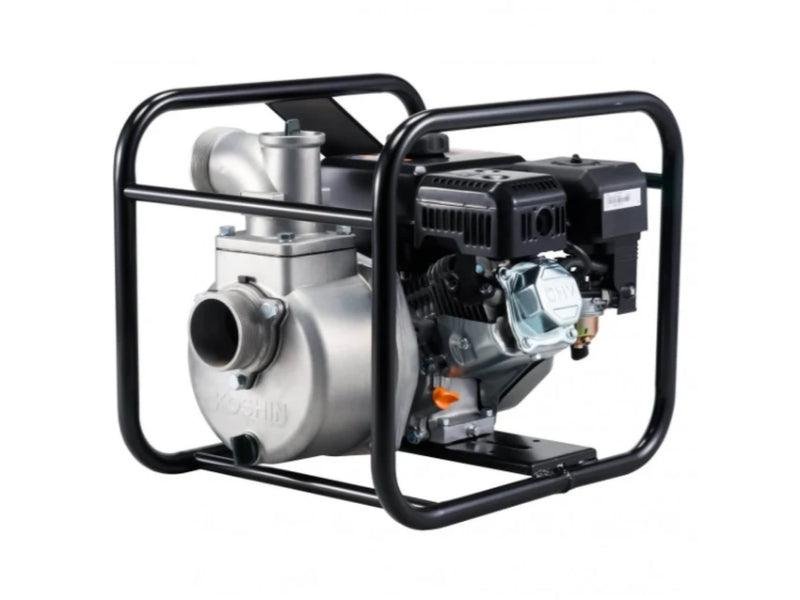

Koshin SEV-80E Water Pump
The Koshin SEV-80E is a powerful self-priming, centrifugal water pump
designed for heavy-duty applications such as irrigation, flood control, and construction site drainage.
Equipped with the reliable Koshin K210S 4-stroke gasoline engine, it delivers
high efficiency and durability in demanding environments.
With a discharge volume of 1100 L/min (290 USG/min) and a
total head of 27 meters, the SEV-80E ensures excellent water transfer performance.
Its robust construction, recoil starter, and high flow rate make it an ideal solution for
both commercial and industrial use.
Specifications
| Category | SEV-80E |
|---|---|
| Connection Dia (Suction / Discharge) | 80 mm (3″) / 80 mm (3″) |
| Connection Thread | Outer Pipe Thread BSP |
| Total Head | 27 m (88 ft) |
| Discharge Volume | 1100 L/min (290 USG/min) |
| Max. Suction Lift | 8 m (26 ft) |
| Engine Type | Forced Air-cooled 4-stroke Gasoline Engine |
| Engine Model | Koshin K210S |
| Displacement | 209cc |
| Rated Output | 3.7 kW (5.0 PS) / 3600 rpm |
| Max. Output | 4.3 kW (5.8 PS) / 3600 rpm |
| Fuel | Automotive Unleaded Gasoline |
| Fuel Tank Capacity | 3.3 L (0.87 USG), usable 2.6 L (0.68 USG) |
| Engine Oil | SAE 15W-40 |
| Engine Oil Capacity | 0.5 L (0.13 USG) |
| Continuous Operating Time | Approx. 1.3 hours |
| Starting Method | Recoil Starter |
| Applicable Liquids | Clear water |
| Operating Temperature | 5°C – 40°C |
| Standard Accessories | 1 Strainer, 2 Coupling set, 3 Hose bands, 1 Engine Tool |
| Net Weight | 24.6 kg (54.2 lbs) |
| Gross Weight | 27.0 kg (59.5 lbs) |
| Product Dimensions (L x W x H) | 528 × 410 × 413 mm |
| Packing Dimensions (L x W x H) | 543 × 425 × 425 mm |
